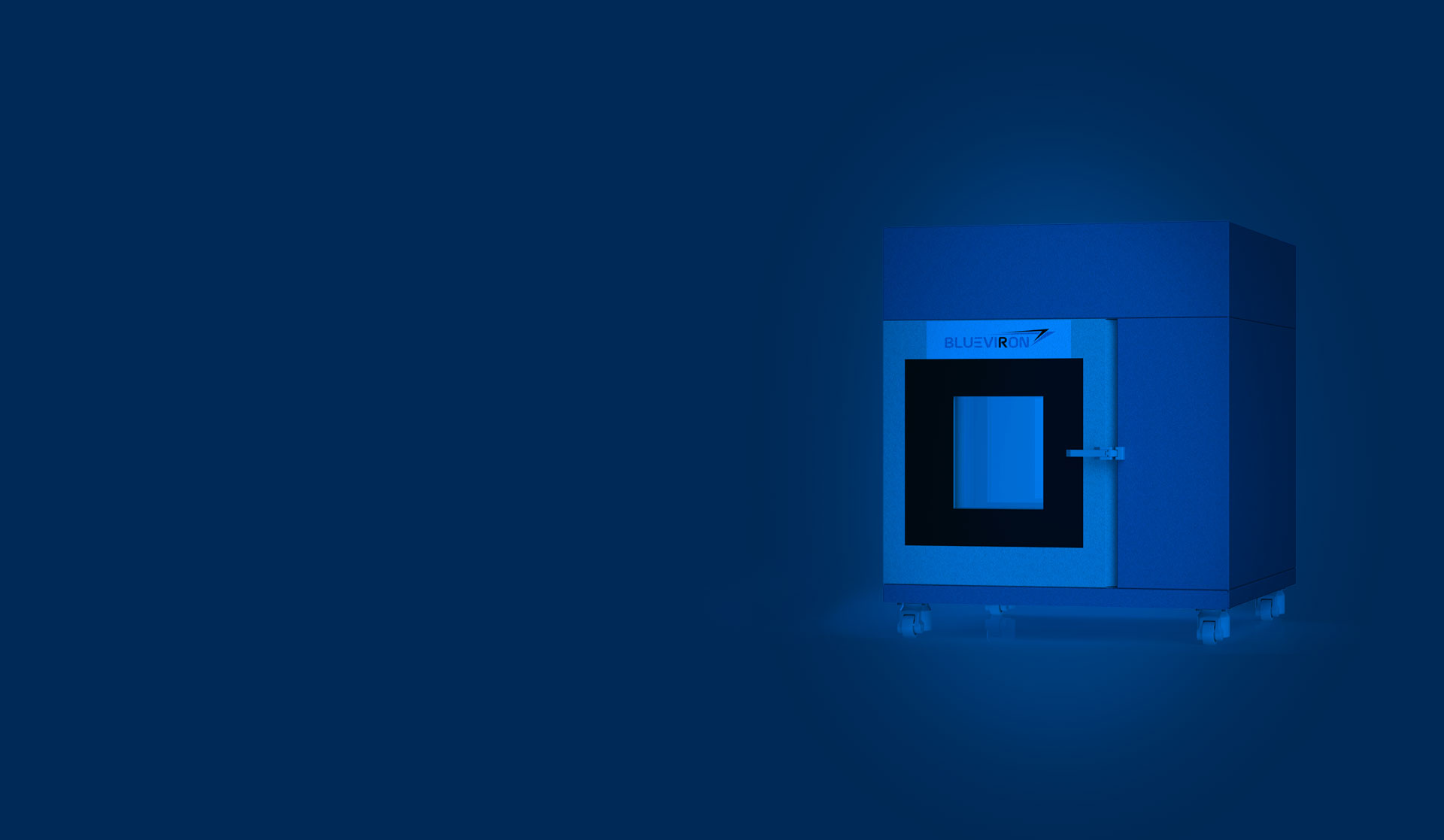

Blueviron Bench Top / Compact Chamber

Our Products

Bench Top / Compact Chamber

Blueviron Bench top test chambers are compact design simulate the environmental test conditions with Lightweight and Economical price. Bench Top chambers come with user friendly Controller kit with touch panel display, our bench top chambers are completely sealed with fully mono black panel housing that eliminates potential leakage and increases the chamber life.

Bench top test chambers deliver the superior performance, Quality assurance and reliability testing’s Applications, smaller products or Components such as electronic, automobile, Spacecrafts, computer chips, Military sensors, mobile phones and other Industries.

We Manufacture and Supply Bench Top / Compact Chamber in Bangalore, Karnataka. We provide products and services in all over India and we also supply products to all other countries worldwide.

FEATURES

  • Volumes: 50L / 100L
  • Temperature Range: 80℃ / 120℃ to -20℃ /-40℃ /-55℃ /-70℃
  • Humidity capability: 25% to 98% RH in the temperature range of +25°C to +85°C
  • Standard model Rate of temperature change (℃/Min): 1℃ to 5℃ /min (IEC 60068-3-5)
  • Controller Types: Touch Screen Panel (HMI / PLC / Modular Controller)
                                           Microprocessor Based PID Programmable Controller
                                           Single Set Point PID (without Program) Controller
  • Supply Voltage 415V 3Ph+N+G / 220V 1Ph+N+G / ± 10% / 50Hz,
  • A – Air Cold Condenser (Room Temperature 20°C to 25°C)
  • W – Water Cold Condenser (Water Temperature 10°C to 20°C)

OPTIONS

  • Inspection Window
  • Shelves (Tray)
  • Port hole (50 or 120mm)
  • Low humidity System (10% to 98%)
  • Humidity Water Purification System
  • RS232/485 networking With control software
Models – Bench B50-40 B50-70 B100-40 B100-70
Capacity –  App Litters 50L 50L 100L 100L
Workspace Dim App (WxDxH)mm 330 x 330 x 470   330 x 330 x 470   450 x 410 x 550   450 x 410 x 550
Temperature Range ℃ −35℃ to 120 −65℃ to 120 −40℃ to 120 −70℃ to 120
Heat Changing Ramp Rate 1℃ /min As per IEC 60068-3-5 2℃ /min As per IEC 60068-3-5
Cool Changing Ramp Rate 1℃ /min As per IEC 60068-3-5 2℃ /min As per IEC 60068-3-5
Humidity Range 25% to 98% RH
Condenser Type Air / Water Cold Condenser

*Technical data may be changed without notice.
