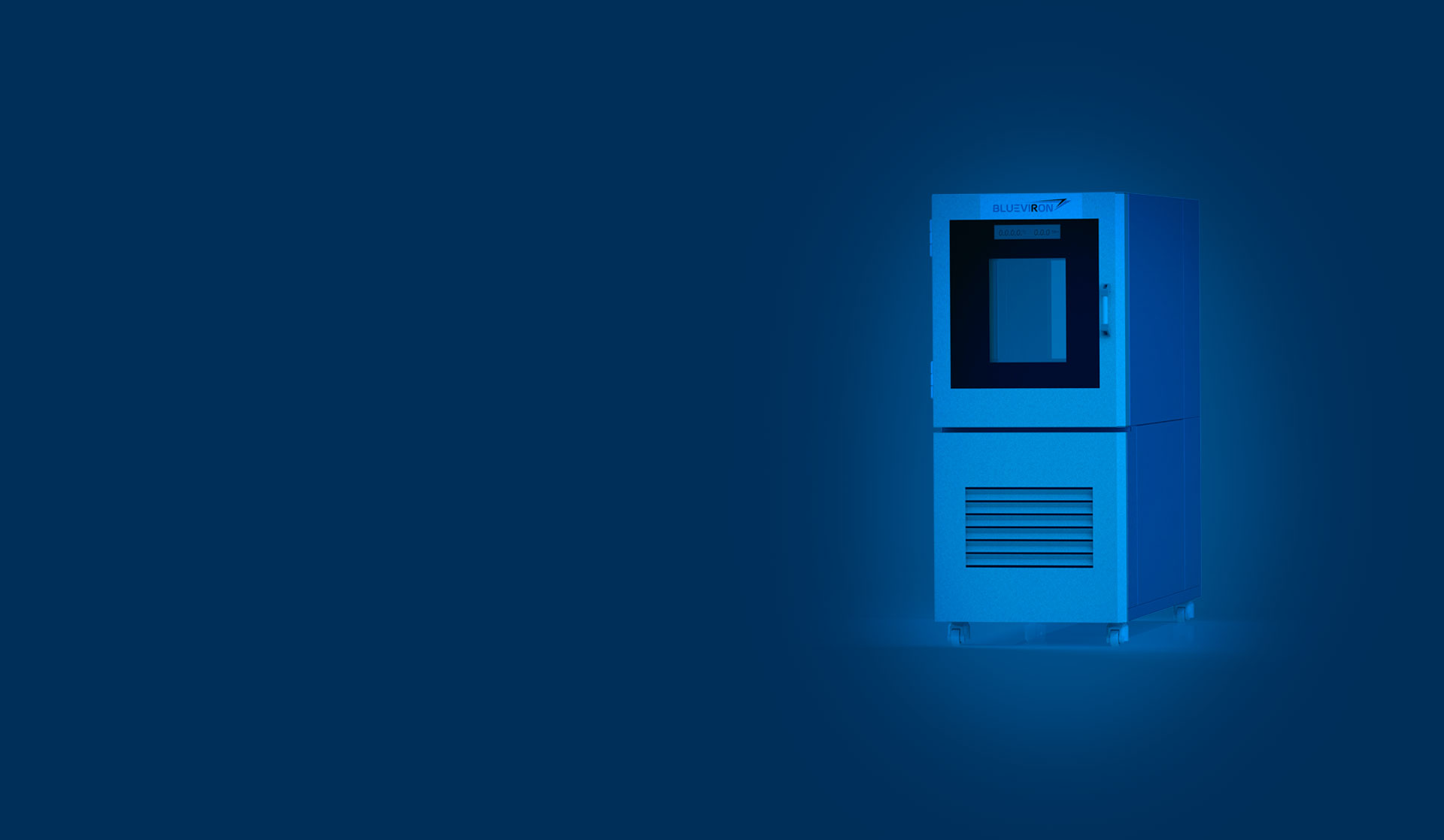

Vacuum Chamber

Blueviron Vacuum Chambers simulate the low pressure conditions. Simultaneous of Air pressure tests for products under the various levels of real-life conditions.

Blueviron design products can precisely simulate the real-life conditions and the chambers come with user friendly Controller kit with touch panel display to meet’s customers testing needs. We offer a wide range selection of vacuum chambers and Heavy duty Vacuum pump, Refrigeration system provides reliable performance.

We are one of the Leading Manufacturer and Supplier of Vacuum Chamber in Bangalore, Karnataka. We provide products and services in all over India and we also supply products to all other countries worldwide.

FEATURES

Rectangular Vacuum Tank Volumes: 220L / 660L / 990L / 1500L
Horizontal Cylindrical Vacuum Tank Volumes
*Custom sizes of chambers are available on user's demand
Vacuum Range: 10 mbar (100,000 feet) or *Custom Range: Ambient to 1 (mbar)
Controller Types: Touch Screen Panel (HMI / PLC / Modular Controller)
Microprocessor Based PID Programmable Controller
Supply Voltage 415V ± 10% / 50Hz / 3Ph+N+G

OPTIONS

Inspection Window
Shelves (Tray)
Port hole (50 or 120mm)
RS232/485 networking With control software

RVC – RECTANGULAR VACUUM CHAMBER

Models - RVC	RVC 220-10M	RVC 660-10M	RVC 990-10M	RVC 1500-10M
Capacity – App Litters	220L	660L	990L	1500L
Workspace Dim App (WxDxH)mm	650 x 460 x 750	825 x 825 x 975	1000 x 900 x 1000	1100 x 1250 x 1100
Vacuum Range (Mbar)	Up to 10Mbar
Vacuum Pump	Single / Two Stage Oil Rotary Pump

HORIZONTAL CYLINDRICAL VACUUM TANK VOLUMES

Models	HCVC130 -10M	HCVC500 -10M	HCVC1100 -10M	HCVC2900 -10M
Capacity – App Litters	130L	660L	1100L	2900L
Workspace Dim App (Length x Diameter)mm	800 x 450	1000 x 800	1400 x 1000	1900 x 1400
Vacuum Range (Mbar)	Up to 10Mbar
Vacuum Pump	Single / Two Stage Oil Rotary Pump

*Technical data may be changed without notice.
